OS Services

Services to Help the User

• UI
  • CLI: text commands
  • Batch interface: Commands are entered into files that are executed
  • GUI
• Program execution: load programs into memory, run them, and end them
• I/O: a means to control I/O devices
• File-system manipulation
• Communication: processes can talk to one another on the same/different computer
  • Can be implemented via shared memory: different processes RW to a shared section of memory
  • Alternatively, message passing: packets between processes are sent between processes
• Error detection: the OS must be able to detect errors in hardware and user programs and take the appropriate action to ensure consistent computing

Services to Ensure Efficient Operation

• Resource allocation
• idrc much about this section and the next section, its pretty obvious

System Calls

• Even the simplest programs can execute many system calls; systems in general execute thousands of syscalls a second
• The programmer doesn’t see this level of detail, however; instead, they design according to an API
  • Windows API, POSIX API, and Java API
• Programming languages have a run-time support system, which is a set of libraries and compiler used to run programs
  • The support system acts as a syscall interface that intercepts syscalls made by the API and invokes the calls within the kernel, returning the syscall status and return variables
• The layer of abstraction that APIs provide are useful because the caller just has to obey the API and understand what a particular API command does
• Three methods are used to pass parameters to the kernel
  1. Pass the parameters in registers
  2. When there are more parameters than available registers, the parameters are stored as a table in memory, and the address is passed in a register
  3. Push the parameters onto the stack and let the kernel pop them off (theoretic support for unlimited parameters)

Syscall Types

Process Control

• If a syscall terminates a process abnormally or the process causes an error trap, then a memory/core dump is written to disk
  • The core dump can then be examined by a debugger
• In either case (whether a process terminates or crashes), the kernel must transfer back control to the invoking command interpreter
  • The command interpreter will print any errors, then simply process the next command or wait for further instruction
  • In a GUI session where there is no CLI, a pop-up window may appear to alert the user an error has occurred
  • Systems may allow for special recovery options
• There are different levels of error depending on the severity; normal termination is level 0
• Where to return control when a child process terminates?
  • Case 1: Control shall return to the parent
    • In order for this to happen, the kernel saves the memory image of the parent so that its state is frozen while the child runs
  • Case 2: Control shall return to the parent, but the parent and child run concurrently
    • This allows for multiprogramming, which means overall faster execution and the possibility of running programs “in the background”
  • Case 3: The parent shall be terminated with the child
• How do we control process execution? Via primitives given to us by the kernel!
  • Get process attributes
  • Set process attributes
  • Terminate process
  • Wait for a specified time interval
  • Wait for an event signal
  • Send an event signal
  • And more!
• Locking: processes can lock and unlock files for exclusive control over them

File and Device Management

• Need to be able to create/delete, open/close, read/write, reposition (this is referring to the current position of the writing pointer), move, copy, and get/set attributes of files and directories
• All resources provided by the kernel are devices
  • Can be physical (disk) or virtual (files)
  • Must be requested and released by the process, similar to locks (some operating systems allow for unmanaged access, but this causes deadlock)
  • Can read, write, and reposition devices, similar to files

Information Maintenance

• Return the current time() and date()
• Miscellaneous information may be returned: number of current users, OS version, free disk space
• dump() memory
• trace program lists each syscall as it is executed
  • Single step: a mode in microprocessor chips that sends a trap after each instruction, which may be caught by a debugger
• The kernel provides a time profile for each process that indicates the time spent running each part of the program
  • Accomplished by reading the program counter at regular timer interrupts
• The kernel records information about all running processes via process attributes
  • Syscalls are used to access and reset a process’s attributes

Communication

• Two models of interprocess communication
  • Message-passing
    • Processes exchange messages via a common mailbox
    • Each process must specify the other process they want to communicate with, and if the other process agrees, a connection is opened
    • Each computer has a host name mapping to a unique IP address that is used to identify itself on the network
    • Each process has a process name, which is converted to a unique identifier that the kernel uses
    • Most processes are system daemons that wait to receive connections and awake then a connection is made
      • The source of the connection (client), and the daemon (server) may now communicate with read_message() and write_message() syscalls
    • The connection is terminated with close_connection()
  • Shared-memory
    • Processes create and gain access to regions of memory owned by other processes
    • Normally, the kernel wouldn’t allow direct memory access of a separate program, so the processes would have to mutually agree to remove this restriction
    • The processes are responsible for:
      • The datatypes in shared memory
      • Ensuring they don’t write to the same memory location concurrently
  • Message passing is good for smaller data and much easier to implement for intercomputer communication
  • Shared memory has less overhead, but you have to be careful about data protection and synchronization between the processes sharing memory

Protection

• Protection allows the kernel to control access to devices
• set_permission(), get_permission(), allow_user(), deny_user() syscalls

System Programs

• System programs provide an environment for program development and execution
• Categorized as:
  • File management
  • Status information
  • File modification
  • Programming-language support
  • Program loading and execution
  • Communication
  • Background services

OS Design and Implementation

Design Goals

• User goals and system goals

Mechanisms and Policies

• Mechanism: how to do something
• Policies: what will be done
• When implementing a mechanism, you want it to be more generalizable so that it remains insensitive to policy changes
  • Therefore, a change in policy would only require redefining some underlying parameters of the mechanism

Implementation

• OSes are written in mixtures of programming languages with various layers of abstraction
  • Kernel codebase is lowest level (assembly)
  • Subroutine codebase is mid level (C)
  • Program codebase is highest level (Python/PERL)
• Higher-level languages are advantageous for OS development in general:
  • Quicker to write
  • Easier to read and debug
  • Easier to port (move across hardware)

OS Structure

• The OS is partitioned into different modules that each serve their own purpose
  • This is in contrast to older systems that had one monolithic system

Simple Structure

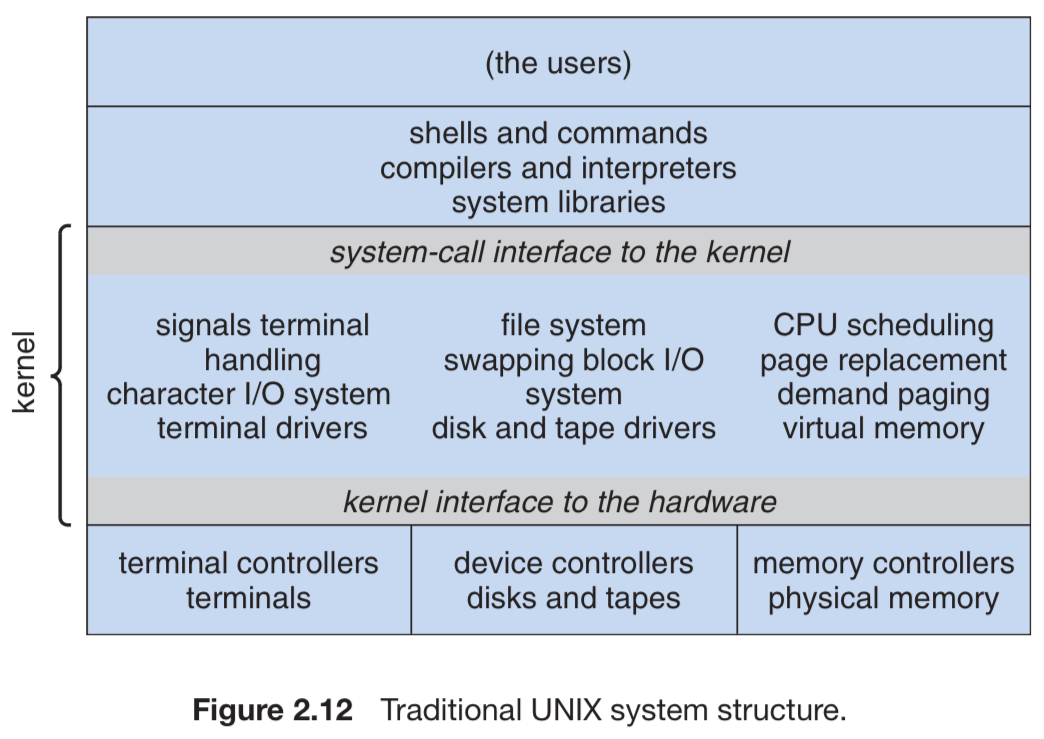

• Older OSes, like MS-DOS and UNIX, had relatively simple structure
• Monolithic structure of the UNIX kernel was very hard to maintain (interfaces and device drivers built into kernel), but very performant because of little overhead

Layered Approach

• Newer OSes are segmented, which allows the kernel to have more control over the system and applications
• Easier to modify system internals and create modular OSes
• Layered approach to modularization
  • OS is broken into layers; each layer consists of data structures and a set of routines that can be invoked by higher layers
  • Layer 0 is hardware and layer $n$ is the UI
  • Each layer is implemented solely using lower-layer functions
• Problems:
  • It’s difficult to appropriately define each layer in accordance with the functionality required by higher levels, so you may need to constantly revisit/redefine lower-layered definitions while building the system
  • Inefficient because any calls originating from the highest layers must first pass through all the layers below it
• Compromise: a system with few layers that each contain high functionality

Microkernels

• Microkernel: nonessential components from the kernel are removed and implemented as programs
  • Provide minimal process and memory management, and an exclusive communication facility
• The microkernel facilitates connections with services running in user space and clients using message passing
• Advantages:
  • Extending the OS is much simpler, since any new additions can be written as programs
    • If anything does have to be modified, it ends up being small
  • Easier to port
  • More secure, since most processes are running in user mode
• Disadvantage: increased overhead, since system functions are disconnected from user processes

Modules

• Kernels have a set of core components and may incorporate additional services via loadable kernel modules at boot time or during run time
  • This allows services to be linked to the kernel without having to recompile the entire kernel for every new change to the modules
• Any module can call any other module (in addition to the kernel)
• Resembles the microkernel approach, but without any of the overhead from message passing

Hybrid Systems

• Very few OSes have a distinct, well-defined structure; rather, they incorporate a combination of all of the above methods
• There’s a bunch of other subsections on the structure of recent OSes, but it’s irrelevant

OS Debugging

• Debugging: finding and fixing errors in a system
  • Includes performance tuning: removing processing bottlenecks to improve performance

Failure Analysis

• Most OSes write error information to a log file if a process fails
• They can also write a core dump and store it in a file for volatile memory analysis
• A kernel failure is called a crash
  • Error info is saved to a log file, and the memory state is saved to a crash dump
  • To accomplish this independently of the error and devices, the kernel writes the crash dump into a section of the disk without a file system, then writes it to the crash dump file upon reboot

Performance Tuning

• Trace listings help identify bottlenecks in the kernel
  • All “interesting” events are logged with their time and some important parameters
  • This log can be read by an analysis file to determine system performance
  • The traces are reproducible and may be fed into a system simulator with a modified kernel to determine whether performance improved
• Single-purpose, interactive tools help sysadmins question the state of system components and applications
  • top on UNIX displays resource usage
  • Windows Task Manager
  • Other tools may display disk I/O, memory allocation, and network traffic

DTrace

• Dynamically adds probes to user processes and the kernel
  • Each probe can be queried to determine information about the kernel, system state, and processes
  • Different providers create different kinds of probes
• Lines ending in “U” are in user mode and “K” is kernel mode
• Before DTrace, kernel devs had to resort to:
  • Breakpoints to examine the system state
  • Profiling: a technique that periodically looks at the instruction pointer to see the code being executed (shows trends but not individual execution)
• Composition of DTrace: a compiler, a framework, probe providers, and probe consumers
• Steps of operation:
  1. DTrace probe providers create probes
  2. Kernel structures keep track of all created probes created in a hash table mapping names to unique identifiers
  3. When a probe is enabled, some machine code in the area to be probed is rewritten to call dtrace_probe(identifier) and then the code resumes operation
• DTrace requires an interface with the kernel to work; thus, the compiler generates bytecode that is run by the kernel directly
  • This allows for the enabling of probes, consumers in user mode, and communication between both
  • This also means the DTrace program must be ran with elevated privileged (i.e., as root)
• A probe consumer is code that is interested in a probe and its results
  • It requests the provider to create probes
  • When a probe fires, it emits data that is managed by the kernel
  • Enabling control blocks within the kernel contain predicates that allow filtering out the execution of the list of actions in the ECB
    • Common action is to capture some bit of data, such as a variable at the point of probe execution
  • Once the consumer terminates, the corresponding ECBs are removed

OS Generation

• SYSGEN: Using a description of the system (via reading from files or asking the user) to generate a specially-tailored OS
  • Typically used at the installation stage of an OS; the system description creates tables and selects modules from a precompiled library that are linked to form the generated OS

System Boot

• This section reiterated a lot from Bootstrapping and Boot Time
• Bootstrappers execute the code from within an OS’s boot block at a fixed disk location

References

• Source: Silberschatz, Galvin & Gagne, Operating System Concepts Essentials, p. 77
• Course slides: Operating System Structures
• Practice 2 solutions
