Operating Systems

• Different OSes can exist for different tasks

What OSes Do

• A computer system can be divided into four components:
  • Hardware
  • OS
  • Applications
  • Users
• To understand the role of the OS, we need to closely examine the viewpoint of the user and the system

User View

• Most users interact with their computer via a keyboard, mouse, and monitor
  • Such a system would have an OS that only allows for one user at a time; this allows the currently logged-in user to monopolize the computer’s resources
  • This OS would be designed primarily for ease of use (which implies complex graphics and interaction) with some attention for performance (since there are many applications), but a complete disregard for resource utilization (how hardware/software resources are shared)
• Some users sit at a terminal connected to a mainframe/minicomputer
  • Other users can access the same computer remotely using their own terminal
    • Important note: the terminal requires very little interaction complexity (i.e., it just needs to print text output, so no complex graphics needed; also, no need for a mouse)
  • Since multiple terminals can access the same computing device, the OS has to support concurrent user sessions and maximize resource utilization (efficiently allocate the hardware/software across the logged-in users)
• Some users can sit at a workstation connected to a network consisting of other workstations and a server
  • The network is also connected to file, compute, and print servers, access to which are shared between the workstations
  • The server needs to support multiple concurrent graphical sessions with applications while allocating compute resources effectively on a per-user basis
    • Thus, a compromise between usability and resource utilization is reached
• Most people nowadays have phones, which feature a touch screen for interaction rather than a keyboard and mouse
  • Mobile phones have OSes that support applications and graphics just like normal computers; albeit, at a smaller scale
• Some computers have little to no user view
  • Embedded systems involving microcontrollers, such as smart light controllers, computers inside cars, etc.
  • These systems are designed to run without user intervention, although sometimes they can be physically taken apart and interacted with on a hardware level

System View

• The OS may be viewed as a resource allocator, since it is the program most intimately involved with the hardware
• It must manage the following resources when performing any action:
  • CPU time
  • Memory space
  • File-storage space
  • I/O devices
• The OS must also act as a control program, in which it manages the execution of user programs to prevent errors and improper use of the computer
  • This means it is primarily concerned with the operation and control of I/O devices, since that’s where conflicts occur the most

Defining OSes More Rigorously

• In truth, there is no universally accepted definition of an OS
  • This is due to the diverse range of features and use cases that different OSes come shipped with
• Most people would agree, however, that the OS is the one program running all the time on the computer, known as the kernel
• Along with the kernel, there are system programs and applications
  • System programs aren’t part of the kernel itself, but help the user interface directly with the kernel (such as modifying system settings)
• Over time, the number of integrated features and software within OSes has increased
  • This is, in part, due to Moore’s Law and the increasing complexity of software/hardware in general, which requires additional features layered in with the OS
  • Most OSes include middleware, which is a set of software frameworks that allow application developers to interface with the kernel - Mobile OSes such as Android/iOS include middleware that has support for databases, multimedia, and graphics
    • Desktop OSes such as UNIX/Windows have APIs that allow software developers to use core features within the system from within their code

System Organization

System Operation

Modern Computing Configuration Layout

• Memory is accessed via a shared bus between components, such as:
  • One or more CPUs
  • Device controllers, such as the disk controller, USB controller, and graphics adapter
• The CPU and device controllers execute independently of one another, so a separate memory controller is needed to synchronize access to shared memory

Bootstrapping

• The bootstrap program (bootstrapper) is the very first program that runs when a computer is powered on
  • It is stored within the firmware, which is a general term to refer to anything in read-only memory within the hardware
  • Responsible for initializing CPU registers, device controllers, shared memory, and the OS
    • To initialize the OS, the bootstrapper must load the kernel into memory

Boot Time

• Once the kernel is loaded, it is time to serve content to the receiving users
• Services/Daemons are loaded into memory at boot time
  • They are separate from the kernel and spawn other services that are necessary for the user to interact with the OS
  • The first daemon on UNIX is init, which is responsible for starting all necessary/preconfigured services
• After this process is complete, the OS is fully booted (do not confuse the verb “boot” with bootstrapping, which is a separate process altogether, as previously mentioned) and waits for any event to occur

Interrupts

• In order to signify an “event” to the OS, an interrupt is performed
  • Hardware may trigger interrupts at any time by sending a signal to the CPU via the shared bus (this method has the lowest latency)
  • Software may trigger interrupts by executing system/monitor calls
• Interrupts force the CPU to begin executing at the starting address of the interrupt service routine
• Since there are many types of interrupts, there are also many corresponding interrupt service routines that are directly responsible for the behavior of the interrupt
  • For this reason, there is a table of hardcoded pointers, the interrupt vector, stored in low memory that hold the addresses of the interrupt routines for each device
  • The interrupt vector is indexed by the unique identifier corresponding to the device performing the interrupt request to ensure the proper service routine address is retrieved
• Once the service routine has finished executing, the interrupt is completed, and the CPU returns to the original task
  • It restores the CPU’s previous state (registers, program counter, etc.)
  • The CPU resumes execution as though it was never interrupted

Storage Structure

Memory

• All instructions for the CPU to load are stored in memory
  • RAM is most common because it is highly dynamic and rewritable
  • ROM is used for applications that require immutability; it is unique because it cannot be written to (read-only)
    • For example, the bootstrapper is in ROM because you don’t want to modify it
• Memory is an array of bytes
  • Each byte has its own address
  • Interaction with memory is done through load and store instructions; load moves a byte/word from memory into a CPU register and store does the opposite
  • In addition to explicit calls for load and store, CPU automatically loads instructions from main memory for execution

Instruction-Execution Cycle

• Systems with a von-Neumann architecture undergo the following process for executing an instruction:

  1. Fetch instruction from memory and store it in the instruction register
  2. Decode the instruction
     • The operands of the instruction are fetched from memory and stored in an internal register
  3. Store the result in memory

• The memory controller only sees the memory addresses themselves; it doesn’t know how those addresses were generated, which could have been by:

  • The instruction counter
  • Indexing
  • Indirection
  • Literal addresses

• The memory controller also does not know what the memory addresses are being used for, which could be: instructions or data

Problems with Memory

• The problem of finite memory
  • We wish we could store programs and data in memory indefinitely, but it’s not feasible because main memory is too small to accommodate these needs of infinite desire
  • This is more of a scarcity issue than anything; in an ideal world, it would be possible, but it just isn’t from a hardware and resource availability perspective
• The problem of volatility
  • Main memory is volatile and loses its contents when power is lost
  • Most computers have secondary storage to hold data permanently (nonvolatile), but the trade-off is that it’s slower

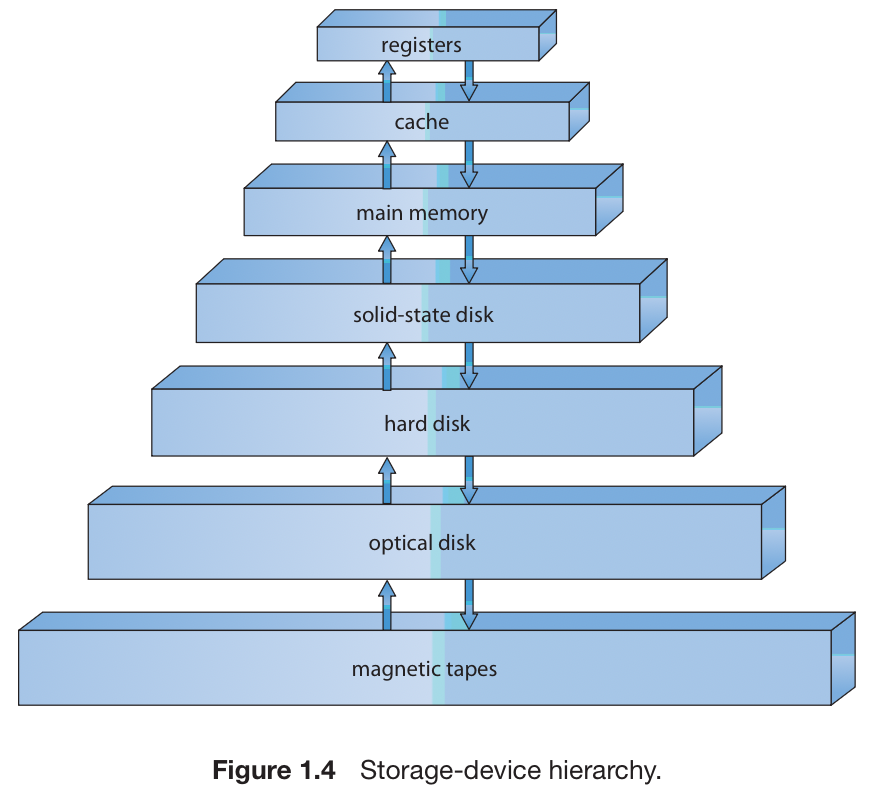

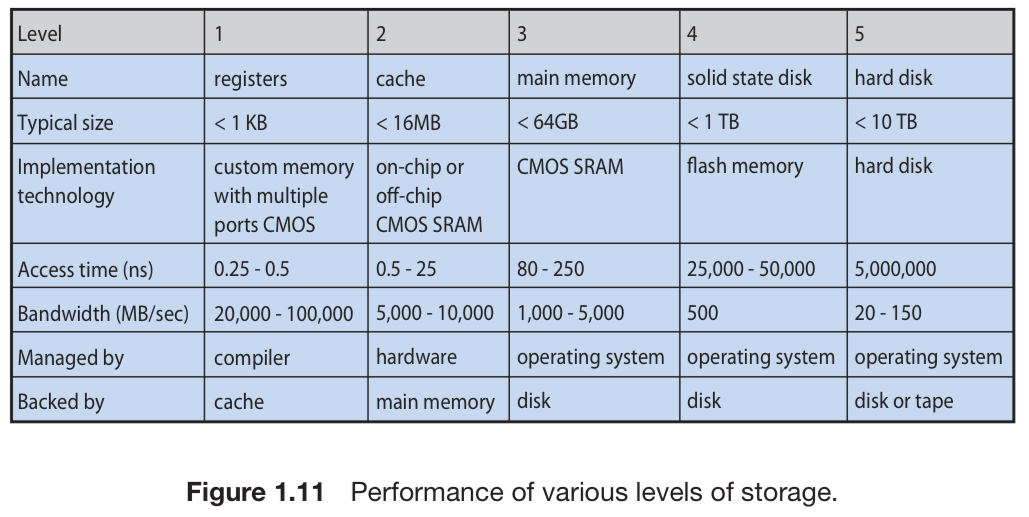

• There are many types of storage systems (shown below) that are used in computing; as you move down, the cost per unit of memory decreases, but the access time increases
  • The first four levels are considered semiconductor memory because they are made of semiconductors and have generally quick access time
    • Advances in semiconductor sizing (in accordance with Moore’s Law) have made the performance gains of semiconductor memory exponentially grow over time while still remaining relatively low-cost

I/O Structure

Overview

• An important capability of OSes is managing I/O operations due to its importance for system reliability and performance
• Multiple devices of the same type may be connected to a single controller, such as a small computer-systems interface (SCSI) controller
• Controllers have buffer storage and special-purpose registers that help them manage data between devices
• Each device controller also has a device driver that interfaces with the OS

I/O Operations

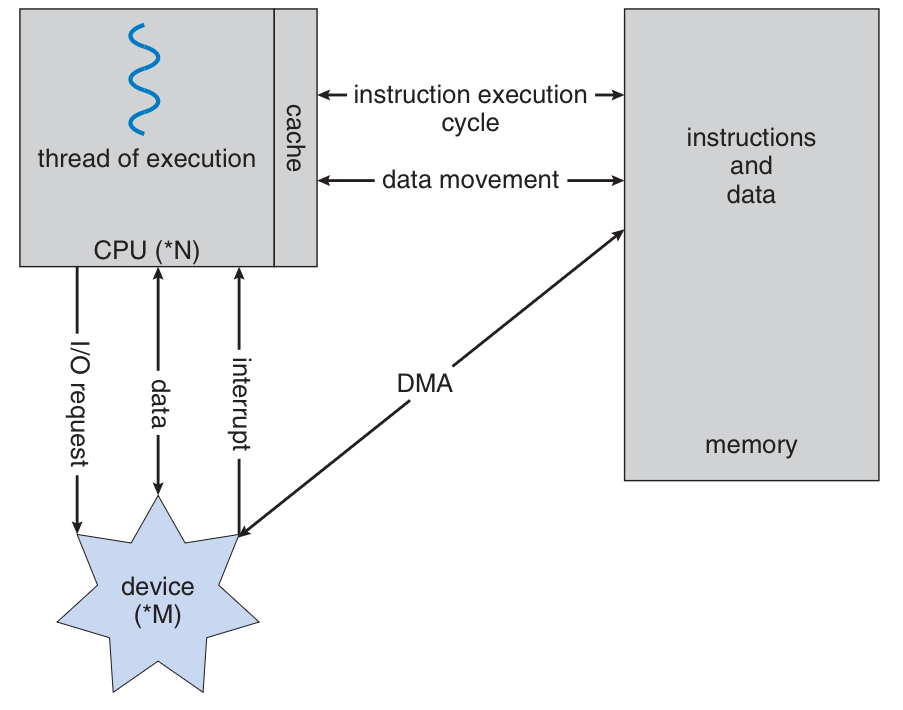

• This is the cycle for an I/O operation:
  1. The device driver loads the registers within the controller
  2. Using the current contents of the registers, the device controller determines an action to take
  3. The controller transfers data from the device to its buffer
  4. The device controller tells the device driver that the operation is complete via an interrupt
  5. The device driver returns control to the OS
     • It could potentially also return the data or a pointer to the data if the operation was a read, or perhaps just return status information in general
• However, the aforementioned cycle has high overhead when dealing with large amounts of data, such as disk operations
  • Direct memory access (DMA) is the solution
    • The controller preinitializes buffers, pointers, and counters for the device so that it can transfer entire blocks of data to the main memory without needing the CPU
    • With this method, one interrupt is generated per block rather than per byte
  • DMA allows the CPU and device controller to work in parallel

System Architecture

Single Processor

• A single-processor system has one main CPU capable of executing a general-purpose instruction set
• It may also include special-purpose processors
  • Disk controllers, keyboard controllers, graphics controllers
  • I/O processors in mainframes
• These special-purpose processors run limited instruction sets and do not run user processes
• They can be managed by the OS or operate autonomously
• As long as there is only one general-purpose CPU, the system is single-processor

Multiprocessor Systems

• Multiprocessor (parallel, multicore) systems contain two or more processors in close communication
• Processors share bus, memory, and devices
• Advantages:
  1. Increased throughput, though less than linear with N processors due to overhead and contention
  2. Economy of scale through shared resources
  3. Increased reliability via graceful degradation or fault tolerance
• Two models:
  • Asymmetric multiprocessing: one boss processor and multiple workers
  • Symmetric multiprocessing (SMP): all processors are peers, performing all tasks
• Modern OSes such as Windows, macOS, and Linux support SMP
• Multiprocessing can change memory access models:
  • UMA: equal access time to all memory
  • NUMA: varying access times depending on memory location
• Multicore CPUs place multiple cores on one chip
  • Faster on-chip communication
  • Lower power usage than multiple single-core chips
• Blade servers: multiple boards in one chassis, each with its own OS, sometimes multiprocessor

Clustered Systems

• Clustered systems join multiple individual systems (nodes) together
• Nodes may be single-processor or multicore
• Nodes share storage and are connected via LAN or high-speed interconnect
• Used for:
  • High availability (failover through redundancy)
  • High-performance computing (parallelization across nodes)
• Structures:
  • Asymmetric clustering: one machine in hot-standby
  • Symmetric clustering: all nodes run applications and monitor each other
• Variants:
  • Parallel clusters: multiple hosts access same shared storage
    • Require distributed lock managers (DLMs) for access control
  • Beowulf clusters: built from commodity hardware and open-source software, often Linux-based
    • Low-cost, high-performance computing solution
• Modern cluster technology uses SANs to allow many systems to attach to shared storage

Operating-System Structure

Multiprogramming

• A single program cannot keep CPU and I/O devices fully busy
• Multiprogramming organizes multiple jobs in memory so CPU always has work
• Jobs stored in a job pool on disk, awaiting allocation into memory
• OS executes jobs in memory, switching when one job must wait
• Ensures CPU utilization is maximized

Time Sharing

• Logical extension of multiprogramming
• CPU switches between jobs so frequently that users can interact with programs directly
• Requires:
  • Interactive input/output
  • Response times typically under 1 second
• Each user gets impression of full system access
• Uses CPU scheduling and multiprogramming
• Programs in memory are called processes
• Processes often pause for I/O; OS switches CPU to other processes
• Requires:
  • Job scheduling (deciding which jobs load into memory)
  • CPU scheduling (deciding which process runs first)
  • Memory management
  • Synchronization and communication
  • Deadlock avoidance
• Swapping and virtual memory used to ensure responsiveness
  • Virtual memory lets processes run larger than physical memory
• Must provide file system, disk management, protection, synchronization

Operating-System Operations

Interrupts and Traps

• OSes are interrupt driven
• Events signaled by:
  • Interrupts (hardware signals)
  • Traps/exceptions (software-generated, e.g., errors, system calls)
• Each interrupt handled by a service routine

Protection

• Multiple processes share hardware and software resources
• Errors in one program must not affect others
• OS must ensure faulty or malicious programs cannot compromise system

Dual-Mode and Multimode Operation

• Two main modes:
  • User mode: for applications
  • Kernel mode: for OS
• Hardware includes a mode bit (0 for kernel, 1 for user)
• At boot, system starts in kernel mode, then launches applications in user mode
• System calls or interrupts switch mode from user to kernel
• Privileged instructions (I/O control, timer, interrupt management) only run in kernel mode
• Ensures OS protection from users and isolation between users
• Some CPUs extend beyond dual-mode for virtualization (VMM mode) or kernel components

Timer

• Interrupts the CPU after a specified period
  • Useful so that user programs that don’t return control to the OS are ended
• Can be fixed or variable
  • Variable: fixed-rate clock and counter that is decremented

Process Management

• Processes compete for resources
• Program counter: specifies the next instruction to execute
  • Multithreaded processes have multiple program counters
• Each process may only execute one instruction at a time

Memory Management

• RAM is the only storage device that CPUs have access to
• Programs must be mapped to addresses in order to be loaded in memory
  • These addresses are generated as the program executes
  • The addresses are used to access instructions and data
• The OS must decide on a management scheme to:
  • Monitor in-use RAM and the processes using RAM
  • Deciding processes and data to move in/out of RAM
  • Allocating/Deallocating RAM

Storage Management

File-System Management

• Files are highly general and organized into directories (the file system)
• OS is responsible for:
  • Creating/Deleting files and directories
  • Supporting primitives for manipulating the file system
  • Mapping files onto secondary storage
  • Backing up the file system

Mass-Storage Management

• Computers need secondary storage to back up RAM
  • Most systems use disks for this
• Disk management is important; the OS must manage the following:
  • Free space management
  • Storage allocation
  • Disk scheduling
• Tertiary storage devices are used to archive/backup data in the long term
  • Write-once, read-many-times (WORM)
  • Read-write (RW)
  • OSes help manage tertiary devices via data migrating and mounting/unmounting

Caching

• Caching: Temporary information is periodically copied to cache, which is faster-accessible to the CPU
• Internal registers: Frequently-used information from RAM is allocated to registers; directly-accessible to CPU; faster than cache
  • Compiler uses highly-optimized algos to automatically allocate and replace register info
• Cache management: the OS decides the cache size and replacement policy when moving between levels of the storage hierarchy

• Copies of data ($A$) can exist concurrently in various storage systems
  • Multitasking environment: ensure different processes with access to $A$ are using the same, most recent copy of $A$
  • Multiprocessor environment: each CPU has a local cache, so there are different copies of $A$ on different CPUs
    • Cache coherency: since the CPUs are executing concurrently, each update to $A$ must be reflected in any other CPU cache in which $A$ resides; this is handled at the hardware level
  • Distributed environment: several copies of $A$ may exist on different computers, each of which may be accessed concurrently; must ensure that any one such copy of $A$ will update the other copies when updated

I/O Systems

• Hardware devices have special quirks and handling methods
• The OS provides a uniform interface for the user and system to interact with different devices consistently
  • Any device-specific irregularities are handled by device drivers
  • The OS also helps manage memory of devices: buffering, caching, spooling

Protection and Security

• Protection: the OS controls access of processes/users to data; this is specified by:
  • The means of control
  • The means of enforcement
• Improves system reliability by exposing faults that are not immediately visible
  • Prevents an entire cascading of errors at the system level
• Provides for the distinction of authorized and unauthorized usage for a system
• Systems can have adequate protection and still allow inappropriate access; Security is primarily concerned with defense against attacks
• OSes have a list of user names and associated unique identifiers
  • UID on UNIX, SID on Windows
• Groups allow distinguishing between sets of users with group permissions; thus, OSes have a list of user groups and associated unique group identifiers (GID)
• Sometimes, a user needs to privilege escalate to gain extra permissions for something
  • UNIX: setuid: program runs with UID of the file owner (effective UID)

Kernel Data Structures

Lists, Stacks, and Queues

List

• Singly linked list: each element points to its successor
• Doubly linked list: each element points to its predecessor and successor
• Circularly linked list: last element refers to first element instead of null
• Disadvantage: access time is $O(n)$ due to list traversal

Stack

• LIFO
• Insertion is push, removal is pop
• Often used by OS when invoking function calls
  • Parameters, local variables, and ret address are pushed onto the stack and popped when the function is returned

Queue

• FIFO
• Example usage: printing jobs

Trees

• Data represented via parent-child relationships
• General tree: parents have unlimited children
• Binary tree: parents have at most 2 children: left and right child
  • Binary search tree (BST): special case in which left_child <= right_child
    • $O(n)$ access time
  • Balanced BST: the tree has at most $\log n$ levels
    • $O(\log n)$ access time
    • Used by Linux for CPU-scheduling algorithm

Hash Functions and Maps

• Hash function: performs a numeric operation on an input and returns a number
  • This output can be used to index an array in $O(1)$ time
• Hash collision: two inputs can have the same output
  • Solution: Create a linked list that stores all items with the same hash value
  • This introduces slightly more overhead, especially if hash collisions are rare; but if they are average/common, then it’s useful (although, you shouldn’t be using a hash function that has a lot of collisions to begin with)
• Hash map: maps keys to values using a hash function
  • Used for password retrieval and creating constant-time references in an OS

Bitmaps

• Bitmap: string of binary to represent the status of $n$ items
• Used when there is a need to represent the availability of a large number of resources
  • Example: disk drives are divided into several thousand disk blocks; a bitmap may be used to represent the availability of each clock

Computing Environments

Traditional Computing

• Older office environments had some PCs connected to a network with file/printer services
  • These environments had poor accessibility and portability
• Newer environments have portals for Web acessibility
• Network computers (thin clients) are used in place of traditional workstations, in which all processing, applications, and storage are done serverside
  • Lower cost: less intensive hardware specs
  • Easier management: software updates can be deployed centrally
  • Higher security: data is on the central server
  • Scalable: adding/replacing clients is fast
• Firewalls protect networks from security breaches

Mobile Computing

• Nothing I didn’t already know

Distributed Systems

• Distributed system: collection of physically separate computer systems that are networked to provide access to shared resources
  • Network: a communication path between multiple systems
  • TCP/IP is the most common network protocol, and most OSes support it
• Networking protocols need an interface device and a device driver
• LAN connects within a room/building/campus
• WAN connects buildings/cities/countries
• Network OS: provides file sharing across network and a communication scheme for processes on different computers to communicate; operates autonomously from all other devices on a network

Client-Server Computing

• Many of today’s systems are server systems build to satisfy requests from clients
• Compute-server system: interfaces with the client to perform actions on the server and return a response
• File-server system: clients can create/update/read/delete files

Peer-to-Peer Computing

• All nodes are considered peers and may be a client or server, depending on whether it is requesting or providing a service
  • There is little latency since there is no bottleneck introduced by one server, and also due to additional nodes providing the service (which also adds redundancy)
• Making a service known to the network is accomplished via:
  • A peer registers its service with a network-wide lookup service
  • A peer broadcasts a request for a service to all other peers via a discovery protocol

Virtualization

• Run OSes as applications within other OSes
  • Emulation: source CPU type is different from target CPU type; requires a translation layer to convert the instruction sets
    • Commonly used when interpreting the high-level code of a programming language; the code is converted to some kind of byte code that is further interpreted into machine code, not by another CPU, but by a theoretic virtual machine
• Virtual machine managers (VMM) allow installation and interaction with multiple OSes

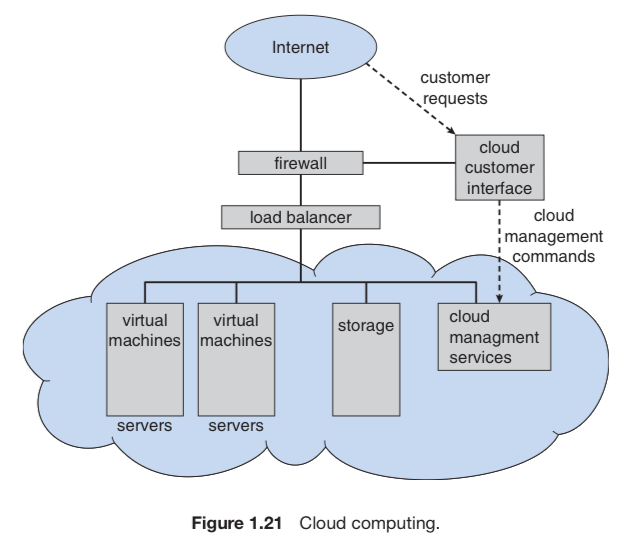

Cloud Computing

• Delivers computing, storage, and applications as a service across a network
• Uses virtualization as the core of its functionality
• Types:
  • Public cloud: service over the Internet for anyone that can pay
  • Private cloud: service run by a company for internal use
  • Hybrid cloud: cloud with private and public components
  • SaaS: applications over the Internet
  • PaaS: software stack over the Internet to be used by multiple applications (i.e., databases)
  • IaaS: servers/storage over the Internet
• Cloud computing environments may provide several of the above types

Real-Time Embedded Systems

• Embedded systems have very specific tasks and run on primitive systems, so the corresponding OSes are limited
• Application-specific integrated circuits (ASIC): hardware that can perform tasks without an OS
• Real-time OSes: used when there is a time constraint on computation or flow of data
  • Must return the correct result within the time constraint!

Open-Source OSes

• Linux exists and is cool
• MacOS has some open source kernel stuff
• Viewing source code can help you learn more about OS functionality and implementation

References

• Source: Silberschatz, Galvin & Gagne, Operating System Concepts Essentials, p. 25
• Course slides: Overview and OS Basics
• Practice 1 solutions
