Instruction Execution

• All instructions are stored in the memory
• The program counter points to instruction memory; it fetches an instruction, which is 4 bytes of machine code, and increments by 4
• The memory bus has three ports: address line (input), data line (input), and data line (output)
  • There is a select for Read (which is basically a load) at the top and a select for Write at the bottom (which is basically a store)
• All of the register numbers point to a register file, or the read registers
• Depending on the instruction format
  • Use ALU to calculate arithmetic result, memory address of load/store, or branch target address
  • Necessary loads and stores are performed to access data memory
  • PC is set to the target address or incremented by 4

Datapath

• Elements that process data and addresses in the CPU
  • Consists of registers, ALUs, multiplexers, memory

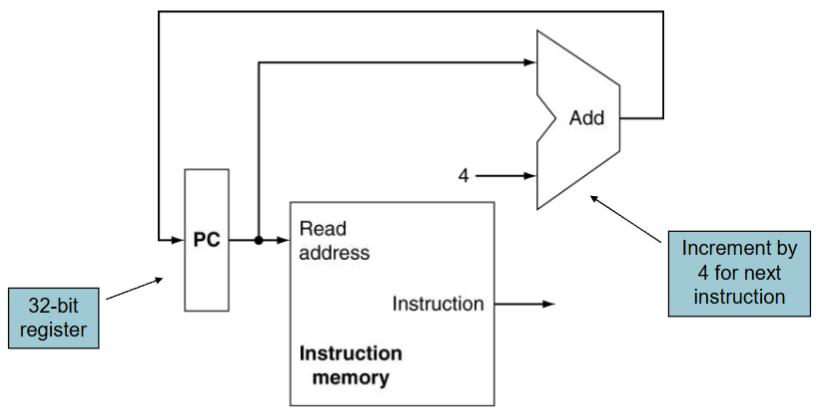

Instruction Fetch

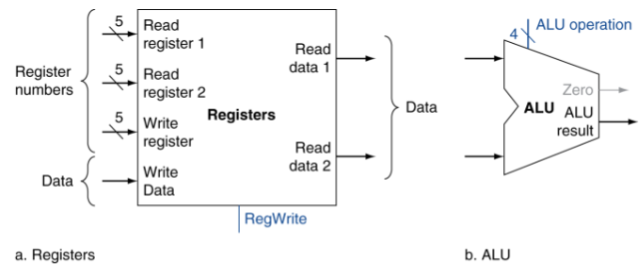

R-Formatting

• Read from two registers
• Perform an arithmetic/logical operation
• Write the result

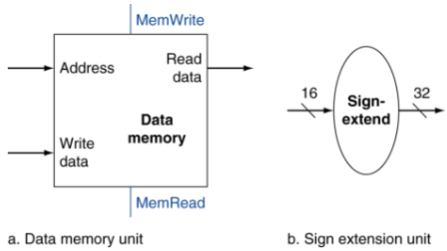

Load/Store

• Read from register
• Calculate address with 16-bit offset
  • Uses ALU and sign-extends to 32-bits
• Load: Reads memory and updates register
• Store: Write register value to memory

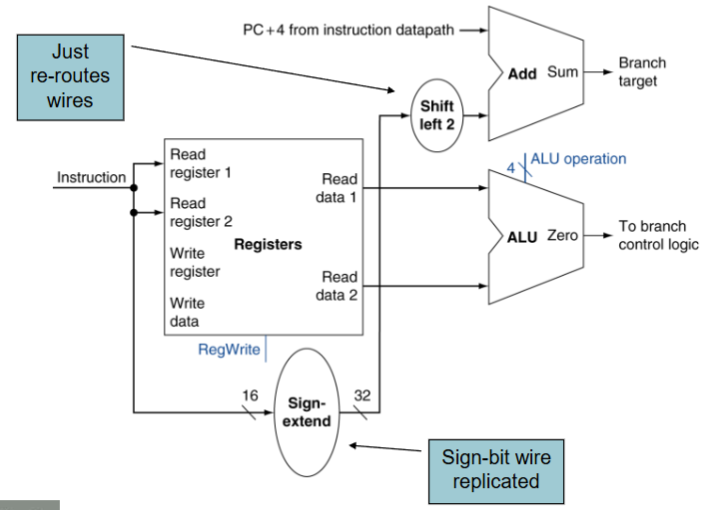

Branching Instructions

• Read from registers
• Subtract operands using ALU and check Zero flag
• Calculate target address
  • Sign-extend displacement
  • Shleft 2 (word alignment)
  • Add to PC + 4
    • Should’ve already been calculated by intruction fetcher

Composing Elements of Datapath

• First-cut datapath performs each instruction in one clock cycle
  • Each datapath element can only perform one function at a time
  • Therefore, need to separate instruction and data memory
• Use muxes where alternate data sources can be used for different instructions

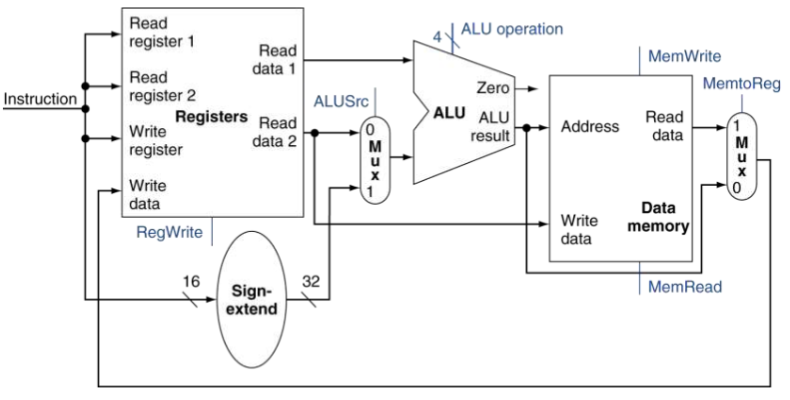

R-Type/Load/Store Datapath

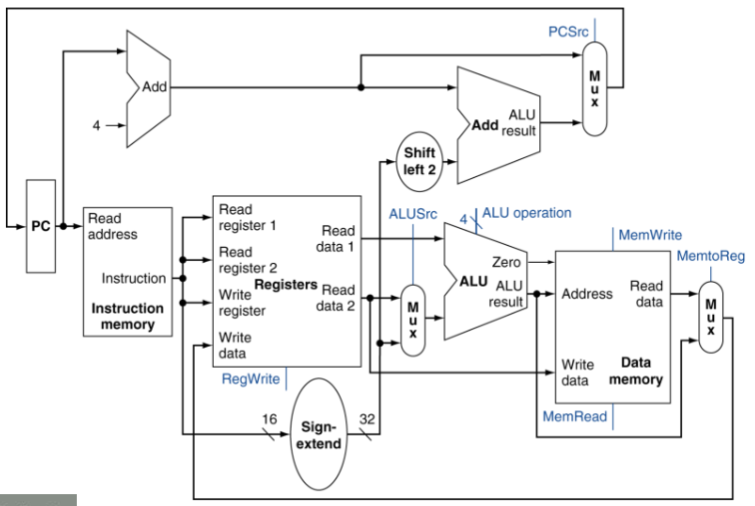

Full Datapath

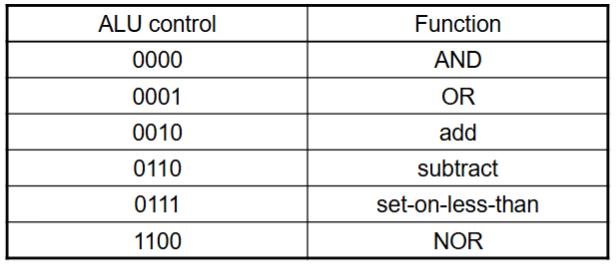

Controlling the ALU

• ALU is used for
  • Load/Store: Function = add
  • Branch: Function = subtract
  • R-type: Function depends on funct field

• There is a 2-bit ALUop that is derived from the opcode
  • This is achieved with combinational logic

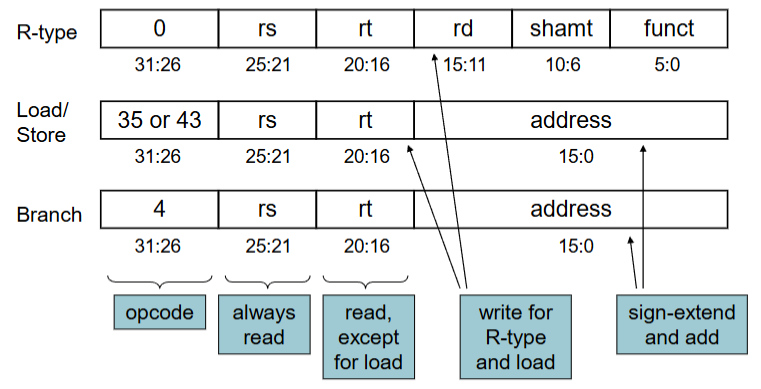

Main Control Unit

• The control signals are derived from the instruction

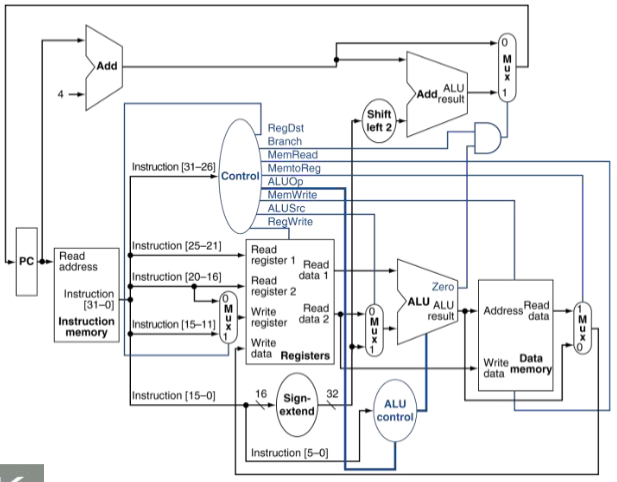

Datapath With Control

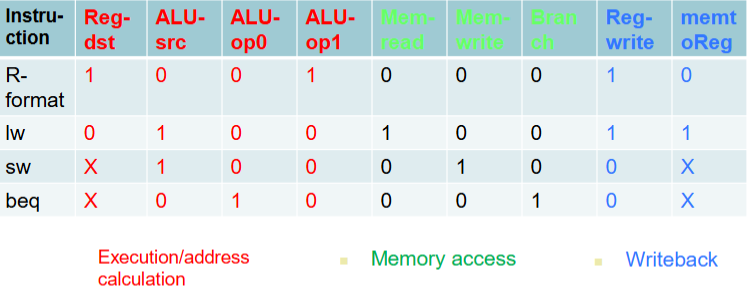

Control Lines

Problems With Current Approach

• Problem: the longest instruction in the datapath determines the clock period
  • The critical path for the overall datapath is lw
    • IM -> REG -> ALU -> DM -> MUX -> REG
• It’s not feasible to vary the period for different instructions
• We want the common case to be fast
• We can incorporate a design that expedites the execution time of the processor via pipelining

Pipelining Analogy

• Pipelined laundry: overlap the executions
  • Parallelism improves the overall performance
  • Shouldn’t introduce any conflicts, as long as each roommate is in different stages!

Pipelining in MIPS

• Five stages:
  1. Instruction fetch
  2. Instruction decode and register read
  3. Execute operation/calculate address
  4. Access memory operand
  5. Write back to register

Hazards

• Situations that prevent starting the next instructions in the next cycle
• Types
  • Structure
    • When a required resource is busy
    • More than one instruction is trying to use the same component
      • Q: This shouldn’t be the case for a pipeline, though… so isn’t this a contradiction since we assume mutual exclusivity?
      • A: Unfortunately, it can still occur, even with distinct components. You could have a memory conflict in the IM/DM if the read/write bits are set at the same time
      • Ex: You shouldn’t have an instruction writing to the IM/DM while there’s another instruction fetching a memory instruction
      • This isn’t really a huge issue on modern architectures, since modern systems do guarantee mutual exclusivity of r/w to instruction and data memory
  • Data (most common)
    • An instruction depends on the completion of data access by a previous instruction
    • Can be eliminated entirely if you have a good enough data path or architecture
  • Control hazard
    • Deciding on control action depending on previous instruction
    • Solution: something to do with half-cycles? Not really sure wasn’t paying attention

References

• Course slides, chapter 4
