Basic Concepts

• We want max CPU utilization when doing multiprogramming
  • This is achieved via the CPU-I/O Burst Cycle: processes execute by alternating a cycle of CPU burst and I/O wait
• I/O wait is because peripheral devices have slower access time than the CPU
• The distribution of the CPU burst is important, since you don’t want the cores to be too spread out (there will be too much overhead)

CPU Scheduler

• Short-term scheduler: select from processes in ready queue and allocate CPU to one
  • Queue is handled with several algorithms

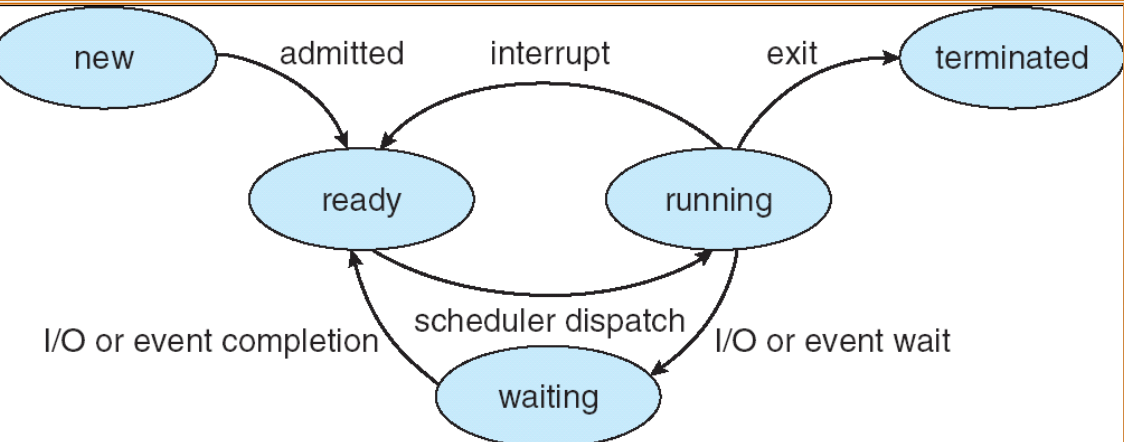

• CPU scheduling decisions can occur only when a process is switching states:
  • Running -> Wait
  • Running -> Ready
  • Waiting -> Ready
  • Running -> Terminated
• Circumstances 1 and 4 is nonpreemptive/cooperative, since the process decides when it gives up the CPU
• Circumstances 2 and 3 are preemptive, since the OS is forcibly taking away the CPU from the process
• A ready program must run before it can wait (it has to be dispatched by the scheduler first)
• A waiting program must become ready before it can run (it has to wait for I/O or event completion first)
• For $n$ states, you have $n(n-1)$ possible edges

Dispatcher

• Component of the scheduler that switches the CPU from one process to another
  • Saves address space of process (suspend)
  • Switch to user mode
  • Jump to proper location in user program and resume that program
• Dispatch latency: time for dispatcher to stop a process and start another; this is pure overhead
• You don’t want to dispatch processes too often; too frequent means the overhead of switching is not doing any useful work from any user POV, and too infrequent will cause programs to hang (usually its a few ms)

Scheduling Criteria

• CPU utilization: % of time CPU is busy; keep the CPU as busy as possible
• Throughput: number of processes completing execution per time unit
• Turnaround time: time for a process to fully execute, from instantiation to termination
• Waiting time: time a process spends in ready queue (not to be confused with the waiting state)
  • Total waiting time would be the sum of the I/O burst times
  • The waiting time for a particular process would be the sum of the waiting times for all the processes before that one
• Response time: time from when a request is submitted until the first response is produced (new -> ready and in queue -> running)
  • Includes the waiting time
  • The period that the process actually spends waiting to run (from launch to run)
• The goal with CPU scheduling algorithms is to max cpu utilization/throughput and min turnaround time/waiting time/response time

Scheduling Algorithms

• A Gantt Chart is a diagram that puts processes in a block for their execution time
  • Generally, we assume that all the processes arrive at time 0
  • And all the process time blocks are contiguous in the Gantt chart, since we are assuming negligible context switching overhead

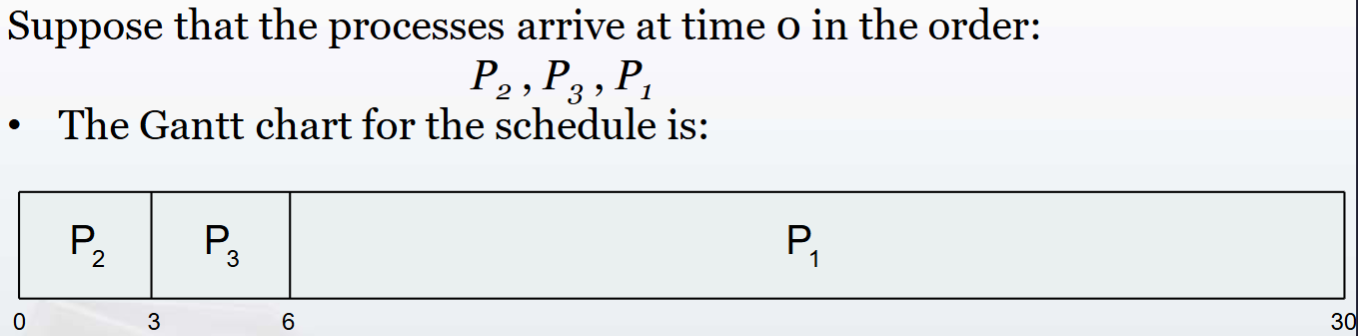

First-Come-First Served

• Processes are scheduled in the order that they arrive
• When the shorter burst time processes go later than long burst process, the average waiting time is much higher due to the Convoy effect
  • This is undesirable since you don’t want to schedule long process first

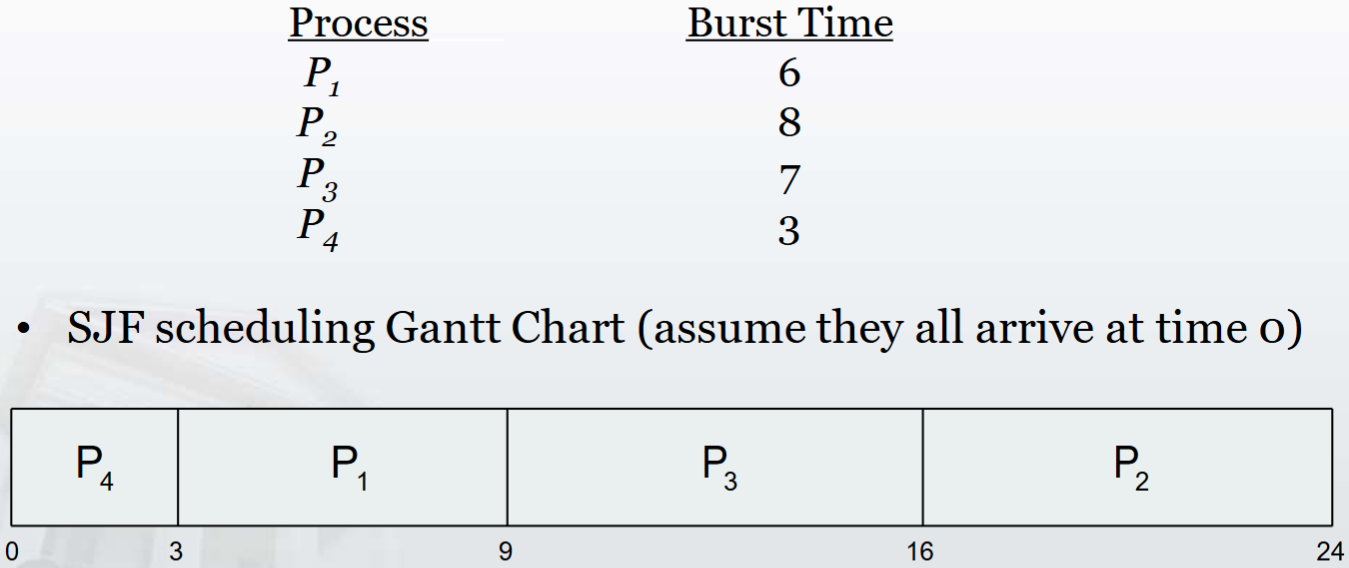

Shortest-Job-First

• Associate with each process the length of its next CPU burst, and schedule the process with the shortest CPU burst time first
• Optimal because is gives the minimum average waiting time for a given set of process
  • Difficulty: how to know the length of next CPU burst?
  • Maybe we can ask the user?

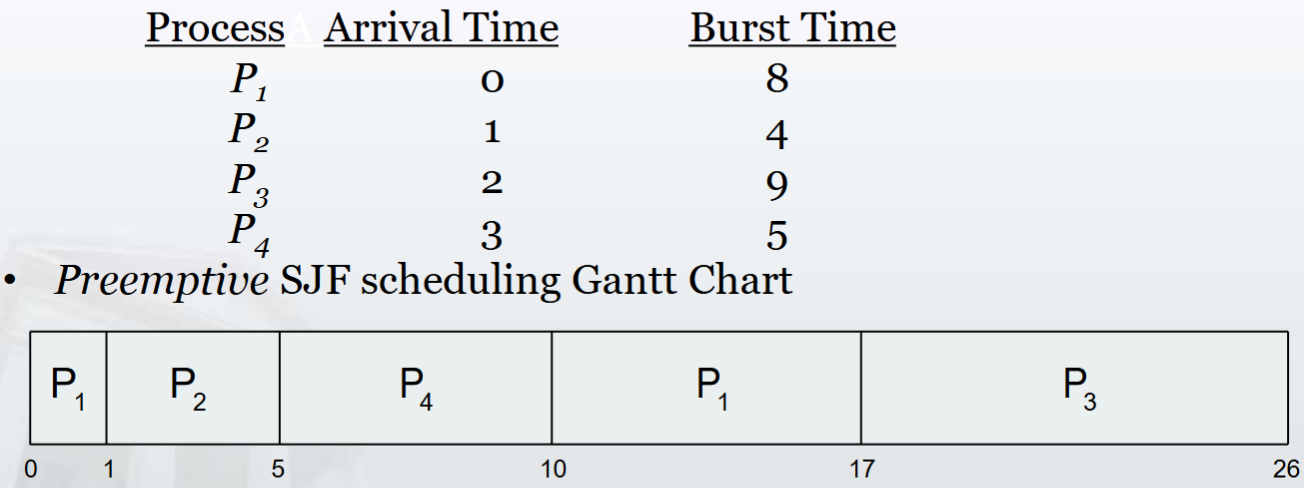

Shortest-Remaining-Time-First (Preemptive SJF)

• Still finding the process with the shortest burst time, but now you have to account for processes that are not arriving at the same time
  • Instead of comparing total burst time, we compute remaining burst time
• It’s called “Preemptive SJF” because you’re preemptively pausing and resuming the process via the kernel
• We assume the process’ creation time is equal to its arrival time

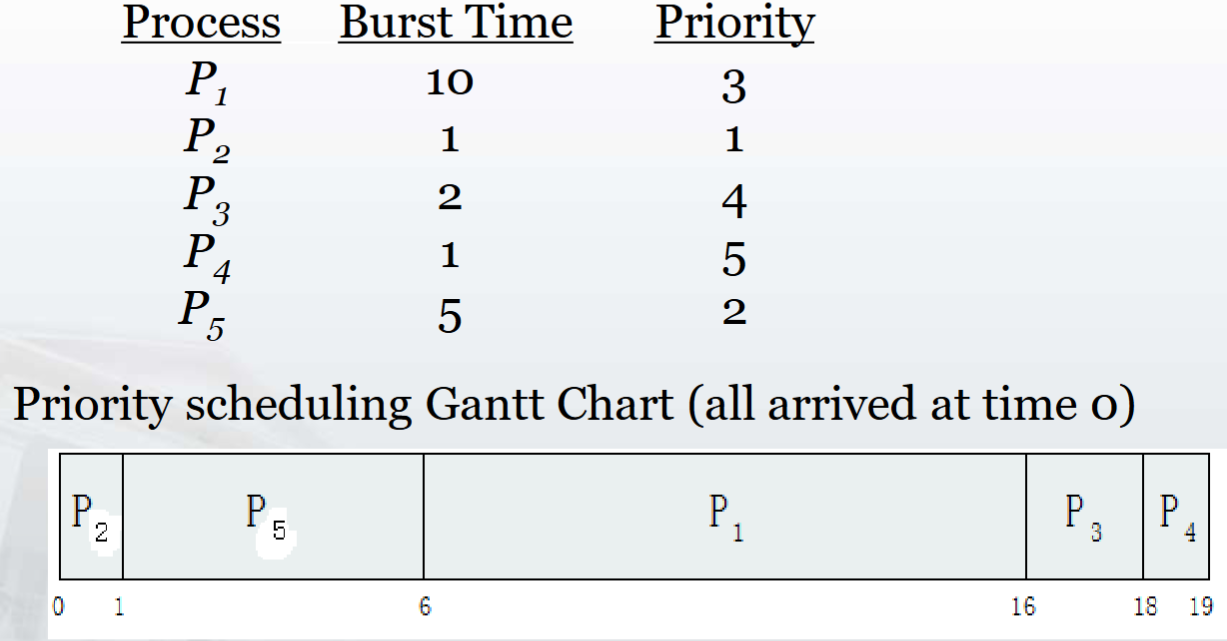

Priority Scheduling

• A priority number is associated with each process
  • Smallest integer is highest priority
• The CPU is allocated to the process with the highest priority
  • Preemptive approach: unfinished low priority processes may be preempted by newly arrived high priority processes
  • Nonpreemptive: just let the process finish first
• Starvation problem: Low priotiy processes may never execute
  • Solution: Process aging; increase the priority of waiting processes as time progresses

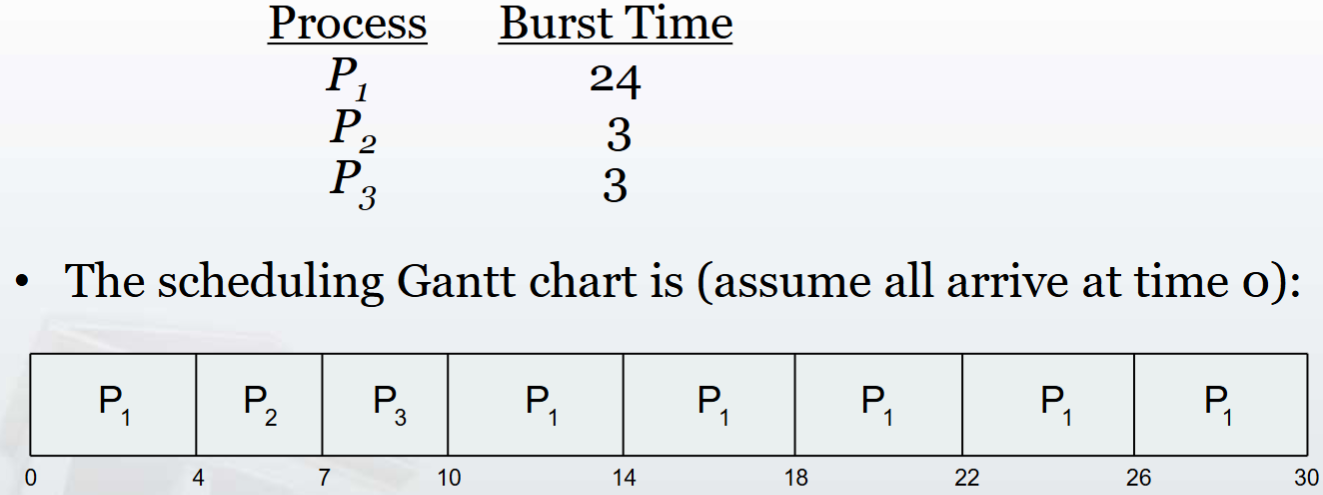

Round Robin

• The waiting time for each process is quantized by the fundamental unit, a quantum, which has a fixed time length
• Each process gets one quantum of time of CPU burst
  • If the process has not finished execution within that time, it must wait $(n-1)q$ time units before it is scheduled again
• The timer will interrupt at the end of every quantum to schedule the next process
• Performance:
  • $q$ very large: essentially becomes FCFS or FIFO
  • $q$ very small: very inefficient, since the quantum time is small with regard to the context switch time
  • The best heuristics keep $q$ small but not too small
  • Typically higher turnaround time than SJF, but better response time overall

Time Formulas

• Notation: $A_i$ arrival time, $C_i$ completion time, $B_i$ burst time, $S_i$ start time, $n$ total number of processes
• All times can be read directly from the Gantt chart

Turnaround Time

• Time from process arrival to completion
• Per process: $TAT_i = C_i - A_i$
  • If all processes arrive at $t = 0$, this simplifies to $TAT_i = C_i$
• Average turnaround time:

Waiting Time

• Total time spent in the ready queue (not running)
• Per process: $WT_i = TAT_i - B_i$
  • If the zeroth process finishes execution in a single burst, it has a waiting time of zero
  • This could apply to the other processes as well, but only if they begin execution at their arrival time
• Average waiting time:

Response Time

• Time from arrival until the process first gets the CPU
• Per process: $RT_i = S_i - A_i$
  • For all processes arriving at $t = 0$, $RT_i = S_i$
• For nonpreemptive algorithms (such as FCFS, SJF, and Priority), the response time equals the waiting time, since the processes do not stop between execution once they have started
• Average response time:

Multilevel Queue

• Ready queue is split into separate queues, each with its own scheduling policy
  • Foreground queue: interactive processes (use Round Robin)
  • Background queue: batch processes (use FCFS)
• Each process is permanently assigned to one queue
• Scheduling between queues:
  • Fixed priority scheduling: one queue always runs before the other (may cause starvation)
  • Time slicing: each queue gets a portion of CPU time (e.g. 80% to foreground, 20% to background)
• Advantage: separates short, interactive tasks from long batch tasks for better responsiveness
• Disadvantage: inflexible; once assigned, a process cannot move to another queue

Multilevel Feedback Queue

• Processes can move between queues based on their behavior
  • For example, a CPU-bound process moves to a lower-priority queue
  • An I/O-bound or newly arriving process may move to a higher-priority queue
• Parameters of the scheduler:
  • Number of queues
  • Scheduling algorithm for each queue
  • Rules for entering and moving between queues
  • Upgrade policy: determines when to move a process to a higher queue
  • Demotion policy: determines when to move a process to a lower queue
• Aging is implemented by moving long-waiting processes up the queues
• Used by general-purpose OS kernels to balance throughput and responsiveness

Multiple-Processor Scheduling

• Scheduling is more complex when multiple CPUs are available
• Asymmetric multiprocessing:
  • One processor handles all scheduling and system data structures
  • Simpler design but may cause a bottleneck
• Symmetric multiprocessing (SMP):
  • Each processor is self-scheduling
  • Either a common ready queue or a private queue per processor
  • Most modern OS use SMP
• Processor affinity:
  • Processes tend to run on the same CPU to maximize cache reuse
    • Soft affinity: OS tries to keep process on the same CPU
    • Hard affinity: process is bound to a specific CPU
  • Processor sets allow grouping CPUs for load distribution
• Load balancing is necessary to avoid idle processors while others are overloaded
• SMP improves throughput but introduces synchronization and data consistency challenges

References

• Source: Silberschatz, Galvin & Gagne, Operating System Concepts Essentials, p. 291
• Course slides: CPU Scheduling
• Practice 6 solutions
